Introductory Networking
OSI
Siap π Ini ringkasan inti OSI Model versi singkat & gampang diingat:
OSI Model (7 Layer) β Ringkasan Penting
Mnemonic: Anxious Pale Shakespeare Treated Nervous Drunks Patiently (Application β Physical)
Layer 7 β Application
- Berhubungan langsung dengan aplikasi (browser, email, dll)
- Menyediakan interface agar aplikasi bisa kirim/terima data
Layer 6 β Presentation
- Format & transform data
- Enkripsi, dekripsi, kompresi
- Supaya data bisa dipahami oleh sistem tujuan
Layer 5 β Session
- Membuat, menjaga, dan mengakhiri sesi komunikasi
- Memungkinkan banyak koneksi bersamaan tanpa data tercampur
Layer 4 β Transport
-
Menentukan protokol transport
- TCP β reliabel, lambat, ada koneksi (web, file transfer)
- UDP β cepat, tidak reliabel (streaming, video call)
-
Memecah data jadi segment / datagram
Layer 3 β Network
- Menentukan rute & tujuan
- Menggunakan IP address (IPv4/IPv6)
- Contoh: routing di internet
Layer 2 β Data Link
- Menggunakan MAC address
- Mengemas data jadi frame
- Error checking sebelum dikirim ke hardware
Layer 1 β Physical
- Hardware & sinyal fisik
- Kabel, listrik, gelombang
- Kirim bit 0 dan 1 secara fisik
- Which layer would choose to send data over TCP or UDP? Answer with the number of the layer: e.g. if the answer would be "the application layer", then you would enter "7".
4
- Which layer checks received information to make sure that it hasn't been corrupted? Answer with the number of the layer: e.g. if the answer would be "the application layer", then you would enter "7".
- Lapisan manakah yang memeriksa informasi yang diterima untuk memastikan bahwa informasi tersebut tidak rusak? Jawablah dengan nomor lapisan tersebut: misalnya, jika jawabannya adalah "lapisan aplikasi", maka Anda akan memasukkan "7".
2
- In which layer would data be formatted in preparation for transmission? Answer with the number of the layer: e.g. if the answer would be "the application layer", then you would enter "7".
- Pada lapisan manakah data akan diformat sebagai persiapan untuk transmisi? Jawablah dengan nomor lapisan tersebut: misalnya, jika jawabannya adalah "lapisan aplikasi", maka Anda akan memasukkan "7".
2
- Which layer transmits and receives data? Answer with the number of the layer: e.g. if the answer would be "the application layer", then you would enter "7".
- Lapisan manakah yang mengirim dan menerima data? Jawablah dengan nomor lapisan tersebut: misalnya, jika jawabannya adalah "lapisan aplikasi", maka Anda akan memasukkan "7".
1
- Which layer encrypts, compresses, or otherwise transforms the initial data to give it a standardised format? Answer with the number of the layer: e.g. if the answer would be "the application layer", then you would enter "7".
- Lapisan manakah yang mengenkripsi, mengompresi, atau mengubah data awal untuk memberikannya format standar?
6
- Which layer tracks communications between the host and receiving computers?
- Lapisan manakah yang melacak komunikasi antara host dan komputer penerima?
5
- Which layer accepts communication requests from applications?
7
- Which layer handles logical addressing?
3
- When sending data over TCP, what would you call the "bite-sized" pieces of data?
segments
- [Research] Which layer would the FTP protocol communicate with? Answer with the number of the layer: e.g. if the answer would be "the application layer", then you would enter "7".
7
- Which transport layer protocol would be best suited to transmit a live video?
UDP

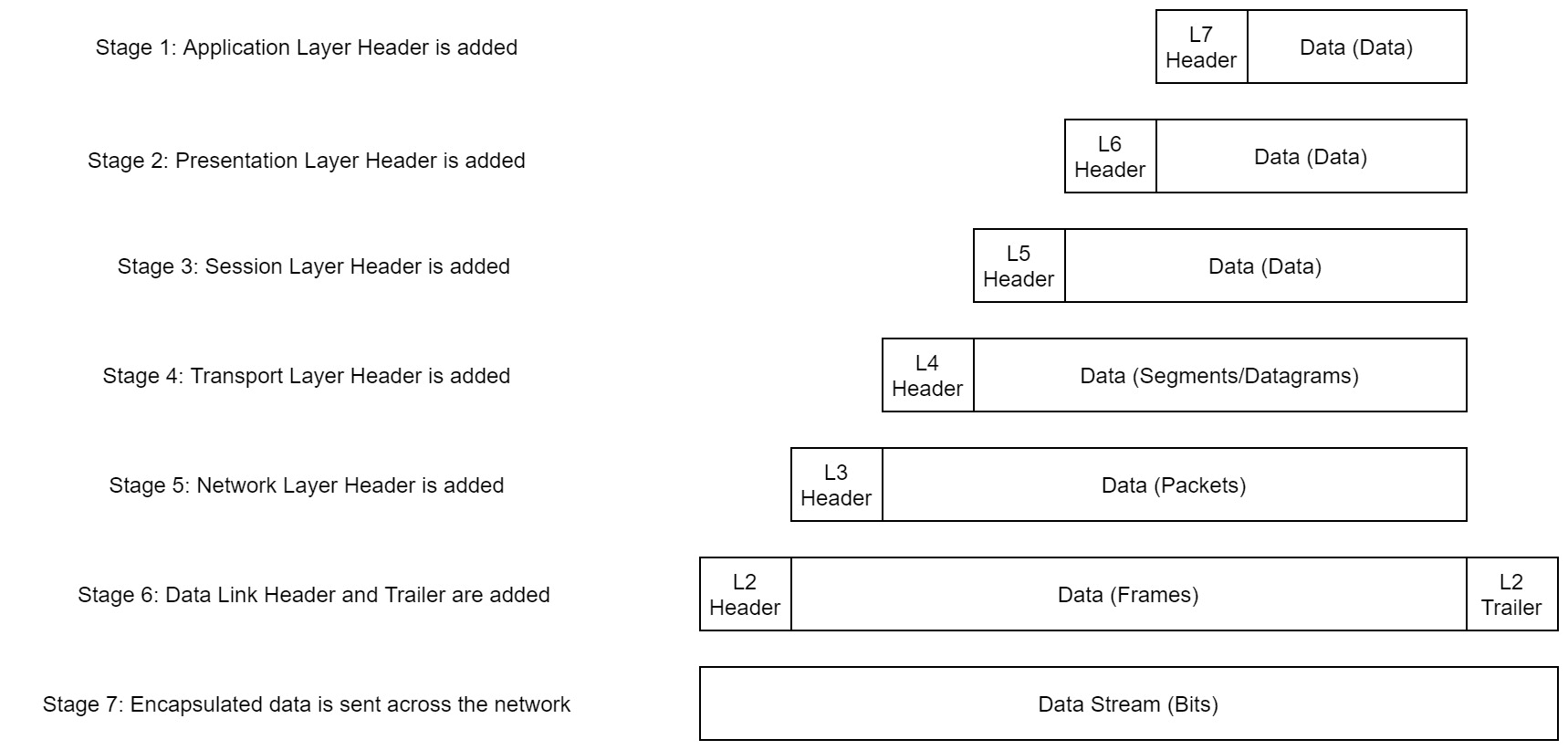

Encapsulation
Encapsulation (Pengiriman Data)
-
Saat data turun dari Layer 7 β Layer 1, setiap layer menambahkan header (dan Data Link juga menambahkan trailer).
-
Header berisi informasi spesifik layer:
- Transport β info TCP/UDP
- Network β IP sumber & tujuan
- Data Link β MAC + error checking (trailer)
-
Trailer membantu cek integritas data (deteksi korupsi & gangguan).
Nama data di tiap layer
- Layer 7β5: Data
- Layer 4: Segment (TCP) / Datagram (UDP)
- Layer 3: Packet
- Layer 2: Frame
- Layer 1: Bits
De-encapsulation (Penerimaan Data)
- Proses kebalikan dari encapsulation.
- Data naik dari Physical β Application, sambil menghapus header/trailer tiap layer.
- Akhirnya data sampai ke aplikasi dalam bentuk asli.
- How would you refer to data at layer 2 of the encapsulation process (with the OSI model)?
Frames
- How would you refer to data at layer 4 of the encapsulation process (with the OSI model), if the UDP protocol has been selected?
Datagrams
- What process would a computer perform on a received message?
De-encapsulation
- Which is the only layer of the OSI model to add a trailer during encapsulation?
Data Link
- Does encapsulation provide an extra layer of security (Aye/Nay)?
Aye
The TCP/IP Model
TCP/IP Model β Ringkasan Penting
Layer TCP/IP (4 layer)
- Application β layanan untuk aplikasi (HTTP, FTP, DNS, dll)
- Transport β komunikasi end-to-end (TCP / UDP)
- Internet β addressing & routing (IP)
- Network Interface β pengiriman fisik data (gabungan Data Link + Physical)
Catatan: Kadang dibagi jadi 5 layer, tapi resmi tetap 4 layer (RFC1122).
Kenapa OSI Masih Dipakai?
- TCP/IP = dipakai di dunia nyata
- OSI = lebih detail & rapi β cocok untuk belajar konsep jaringan
Pemetaan OSI β TCP/IP
- OSI Layer 7β5 β TCP/IP Application
- OSI Layer 4 β TCP/IP Transport
- OSI Layer 3 β TCP/IP Internet
- OSI Layer 2β1 β TCP/IP Network Interface
Encapsulation
- Sama seperti OSI:
- Setiap layer menambahkan header saat kirim
- Header dihapus saat terima (de-encapsulation)
TCP (Transmission Control Protocol)
- Connection-based
- Reliable (data hilang akan dikirim ulang)
- Digunakan saat akurasi lebih penting dari kecepatan
Three-Way Handshake (Wajib sebelum TCP)
- SYN β client minta koneksi
- SYN-ACK β server setuju
- ACK β client konfirmasi β Koneksi siap β data dikirim
Sejarah Singkat
- Dulu tidak ada standar, perangkat beda vendor tidak kompatibel
- TCP/IP (1982) dibuat oleh US DoD β standar global
- OSI dibuat kemudian oleh ISO β fokus edukasi
- Which model was introduced first, OSI or TCP/IP?
TCP/IP
- Which layer of the TCP/IP model covers the functionality of the Transport layer of the OSI model (Full Name)?
Transport
- Which layer of the TCP/IP model covers the functionality of the Session layer of the OSI model (Full Name)?
Application
- The Network Interface layer of the TCP/IP model covers the functionality of two layers in the OSI model. These layers are Data Link, and?.. (Full Name)?
Physical
- Which layer of the TCP/IP model handles the functionality of the OSI network layer?
Internet
- What kind of protocol is TCP?
Connection-based
- What is SYN short for?
Synchronise
- What is the second step of the three way handshake?
SYN/ACK
- What is the short name for the "Acknowledgement" segment in the three-way handshake?
ACK
Ping
- What command would you use to ping the bbc.co.uk website?
ping bbc.co.uk
ping muirlandoracle.co.uk
# PING muirlandoracle.co.uk(2001-08d8-100f-f000-0000-0000-0000-0241.elastic-ssl.ui-r.com (2001:8d8:100f:f000::241)) 56 data bytes
ping muirlandoracle.co.uk -4
# PING (217.160.0.152) 56(84) bytes of data.
# 64 bytes from 217-160-0-152.elastic-ssl.ui-r.com (217.160.0.152): icmp_seq=1 ttl=53 time=163 ms- What is the IPv4 address?
217.160.0.152
ping --help
# Options:
# <destination> dns name or ip address
# -a use audible ping
# [...]
# -i <interval> seconds between sending each packet
# [...]- What switch lets you change the interval of sent ping requests?
-i
- What switch would allow you to restrict requests to IPv4?
-4
- What switch would give you a more verbose output?
-v
Traceroute
traceroute tryhackme.com
# traceroute to tryhackme.com (104.20.29.66), 30 hops max, 60 byte packets
# 1 * * *
# 2 10.76.196.122 (10.76.196.122) 1.430 ms 10.76.196.120 (10.76.196.120) 1.507 ms 1.496 ms
# 3 143.198.252.10 (143.198.252.10) 1.237 ms 143.198.252.0 (143.198.252.0) 1.318 ms 143.198.252.14 (143.198.252.14) 1.308 ms
# 4 143.244.192.94 (143.244.192.94) 1.113 ms 143.244.192.88 (143.244.192.88) 1.339 ms 143.244.192.86 (143.244.192.86) 1.026 ms
# 5 143.244.224.234 (143.244.224.234) 1.357 ms 143.244.224.232 (143.244.224.232) 1.210 ms 143.244.224.234 (143.244.224.234) 1.419 ms
# 6 143.244.224.211 (143.244.224.211) 1.003 ms 0.519 ms 143.244.224.207 (143.244.224.207) 0.488 ms
# 7 146.190.180.57 (146.190.180.57) 1.836 ms 1.782 ms 1.838 ms
# 8 162.158.160.1 (162.158.160.1) 13.714 ms 172.69.117.60 (172.69.117.60) 0.936 ms 0.913 ms
# 9 172.69.117.51 (172.69.117.51) 1.247 ms 172.69.117.55 (172.69.117.55) 16.555 ms 162.158.160.145 (162.158.160.145) 1.875 ms
# 10 104.20.29.66 (104.20.29.66) 1.392 ms 1.368 ms 1.260 mstraceroute --help
# -i device --interface=device
# Specify a network interface to operate with
# -T --tcp Use TCP SYN for tracerouting (default port is 80)- What switch would you use to specify an interface when using Traceroute?
-i
- What switch would you use if you wanted to use TCP SYN requests when tracing the route?
-T
- [Lateral Thinking] Which layer of the TCP/IP model will traceroute run on by default (Windows)?
Internet
WHOIS
Berikut ringkasan penting tentang Domain & WHOIS:
Domain Names
- Domain = nama mudah diingat untuk menggantikan IP address
- Contoh:
tryhackme.comβ diterjemahkan ke IP - Domain disewa (leased) lewat Domain Registrar untuk jangka waktu tertentu
WHOIS
- WHOIS digunakan untuk melihat informasi pendaftaran domain
- Bisa menampilkan:
- Nama domain
- Registrar
- Tanggal registrasi & expired
- Nameserver
- Di Eropa, data pribadi biasanya disembunyikan (redacted)
whois facebook.com
# Domain Name: FACEBOOK.COM
# Registry Domain ID: 2320948_DOMAIN_COM-VRSN
# Registrar WHOIS Server: whois.registrarsafe.com
# Registrar URL: http://www.registrarsafe.com
# Updated Date: 2025-04-23T19:08:37Z
# Creation Date: 1997-03-29T05:00:00Z
# Registry Expiry Date: 2034-03-30T04:00:00Z
# Registrar: RegistrarSafe, LLC
# Registrar IANA ID: 3237
# Registrar Abuse Contact Email: abusecomplaints@registrarsafe.com
# Registrar Abuse Contact Phone: +1-650-308-7004
# Domain Status: clientDeleteProhibited https://icann.org/epp#clientDeleteProhibited
# Domain Status: clientTransferProhibited https://icann.org/epp#clientTransferProhibited
# Domain Status: clientUpdateProhibited https://icann.org/epp#clientUpdateProhibited
# Domain Status: serverDeleteProhibited https://icann.org/epp#serverDeleteProhibited
# Domain Status: serverTransferProhibited https://icann.org/epp#serverTransferProhibited
# Domain Status: serverUpdateProhibited https://icann.org/epp#serverUpdateProhibited
# Name Server: A.NS.FACEBOOK.COM
# Name Server: B.NS.FACEBOOK.COM
# Name Server: C.NS.FACEBOOK.COM
# Name Server: D.NS.FACEBOOK.COM
# DNSSEC: unsigned
# URL of the ICANN Whois Inaccuracy Complaint Form: https://www.icann.org/wicf/
# >>> Last update of whois database: 2026-01-11T14:05:50Z <<<
# For more information on Whois status codes, please visit https://icann.org/epp
# NOTICE: The expiration date displayed in this record is the date the
# registrar's sponsorship of the domain name registration in the registry is
# currently set to expire. This date does not necessarily reflect the expiration
# date of the domain name registrant's agreement with the sponsoring
# registrar. Users may consult the sponsoring registrar's Whois database to
# view the registrar's reported date of expiration for this registration.
# TERMS OF USE: You are not authorized to access or query our Whois
# database through the use of electronic processes that are high-volume and
# automated except as reasonably necessary to register domain names or
# modify existing registrations; the Data in VeriSign Global Registry
# Services' ("VeriSign") Whois database is provided by VeriSign for
# information purposes only, and to assist persons in obtaining information
# about or related to a domain name registration record. VeriSign does not
# guarantee its accuracy. By submitting a Whois query, you agree to abide
# by the following terms of use: You agree that you may use this Data only
# for lawful purposes and that under no circumstances will you use this Data
# to: (1) allow, enable, or otherwise support the transmission of mass
# unsolicited, commercial advertising or solicitations via e-mail, telephone,
# or facsimile; or (2) enable high volume, automated, electronic processes
# that apply to VeriSign (or its computer systems). The compilation,
# repackaging, dissemination or other use of this Data is expressly
# prohibited without the prior written consent of VeriSign. You agree not to
# use electronic processes that are automated and high-volume to access or
# query the Whois database except as reasonably necessary to register
# domain names or modify existing registrations. VeriSign reserves the right
# to restrict your access to the Whois database in its sole discretion to ensure
# operational stability. VeriSign may restrict or terminate your access to the
# Whois database for failure to abide by these terms of use. VeriSign
# reserves the right to modify these terms at any time.
# The Registry database contains ONLY .COM, .NET, .EDU domains and
# Registrars.
# Domain Name: facebook.com
# Registry Domain ID:
# Registrar WHOIS Server: whois.registrarsec.com
# Registrar URL: https://registrarsec.com
# Updated Date: 2025-04-23T19:08:37Z
# Creation Date: 1997-03-29T05:00:00Z
# Registrar Registration Expiration Date: 2034-03-30T04:00:00Z
# Registrar: RegistrarSafe, LLC
# Registrar IANA ID: 3237
# Domain Status: clientDeleteProhibited https://www.icann.org/epp#clientDeleteProhibited
# Domain Status: clientTransferProhibited https://www.icann.org/epp#clientTransferProhibited
# Domain Status: clientUpdateProhibited https://www.icann.org/epp#clientUpdateProhibited
# Domain Status: serverDeleteProhibited https://www.icann.org/epp#serverDeleteProhibited
# Domain Status: serverTransferProhibited https://www.icann.org/epp#serverTransferProhibited
# Domain Status: serverUpdateProhibited https://www.icann.org/epp#serverUpdateProhibited
# Registry Registrant ID:
# Registrant Name: Domain Admin
# Registrant Organization: Meta Platforms, Inc.
# Registrant Street: 1601 Willow Rd
# Registrant City: Menlo Park
# Registrant State/Province: CA
# Registrant Postal Code: 94025
# Registrant Country: US
# Registrant Phone: +1.6505434800
# Registrant Phone Ext:
# Registrant Fax:
# Registrant Fax Ext:
# Registrant Email: domain@fb.com
# Registry Admin ID:
# Admin Name: Domain Admin
# Admin Organization: Meta Platforms, Inc.
# Admin Street: 1601 Willow Rd
# Admin City: Menlo Park
# Admin State/Province: CA
# Admin Postal Code: 94025
# Admin Country: US
# Admin Phone: +1.6505434800
# Admin Phone Ext:
# Admin Fax:
# Admin Fax Ext:
# Admin Email: domain@fb.com
# Registry Tech ID:
# Tech Name: Domain Admin
# Tech Organization: Meta Platforms, Inc.
# Tech Street: 1601 Willow Rd
# Tech City: Menlo Park
# Tech State/Province: CA
# Tech Postal Code: 94025
# Tech Country: US
# Tech Phone: +1.6505434800
# Tech Phone Ext:
# Tech Fax:
# Tech Fax Ext:
# Tech Email: domain@fb.com
# Name Server: a.ns.facebook.com
# Name Server: b.ns.facebook.com
# Name Server: c.ns.facebook.com
# Name Server: d.ns.facebook.com
# DNSSEC: Unsigned Delegation
# Registrar Abuse Contact Email: abusecomplaints@registrarsafe.com
# Registrar Abuse Contact Phone: +1.6503087004
# URL of the ICANN WHOIS Data Problem Reporting System: http://wdprs.internic.net/- What is the registrant postal code for facebook.com?
94025
- When was the facebook.com domain first registered (Format: DD/MM/YYYY)?
29/03/1997
whois microsoft.com
# Domain Name: MICROSOFT.COM
# Registry Domain ID: 2724960_DOMAIN_COM-VRSN
# Registrar WHOIS Server: whois.markmonitor.com
# Registrar URL: http://www.markmonitor.com
# Updated Date: 2025-04-01T12:38:29Z
# Creation Date: 1991-05-02T04:00:00Z
# Registry Expiry Date: 2026-05-03T04:00:00Z
# Registrar: MarkMonitor Inc.
# Registrar IANA ID: 292
# Registrar Abuse Contact Email: abusecomplaints@markmonitor.com
# Registrar Abuse Contact Phone: +1.2086851750
# Domain Status: clientDeleteProhibited https://icann.org/epp#clientDeleteProhibited
# Domain Status: clientTransferProhibited https://icann.org/epp#clientTransferProhibited
# Domain Status: clientUpdateProhibited https://icann.org/epp#clientUpdateProhibited
# Domain Status: serverDeleteProhibited https://icann.org/epp#serverDeleteProhibited
# Domain Status: serverTransferProhibited https://icann.org/epp#serverTransferProhibited
# Domain Status: serverUpdateProhibited https://icann.org/epp#serverUpdateProhibited
# Name Server: NS1-39.AZURE-DNS.COM
# Name Server: NS2-39.AZURE-DNS.NET
# Name Server: NS3-39.AZURE-DNS.ORG
# Name Server: NS4-39.AZURE-DNS.INFO
# DNSSEC: unsigned
# URL of the ICANN Whois Inaccuracy Complaint Form: https://www.icann.org/wicf/
# >>> Last update of whois database: 2026-01-11T14:07:34Z <<<
# For more information on Whois status codes, please visit https://icann.org/epp
# NOTICE: The expiration date displayed in this record is the date the
# registrar's sponsorship of the domain name registration in the registry is
# currently set to expire. This date does not necessarily reflect the expiration
# date of the domain name registrant's agreement with the sponsoring
# registrar. Users may consult the sponsoring registrar's Whois database to
# view the registrar's reported date of expiration for this registration.
# TERMS OF USE: You are not authorized to access or query our Whois
# database through the use of electronic processes that are high-volume and
# automated except as reasonably necessary to register domain names or
# modify existing registrations; the Data in VeriSign Global Registry
# Services' ("VeriSign") Whois database is provided by VeriSign for
# information purposes only, and to assist persons in obtaining information
# about or related to a domain name registration record. VeriSign does not
# guarantee its accuracy. By submitting a Whois query, you agree to abide
# by the following terms of use: You agree that you may use this Data only
# for lawful purposes and that under no circumstances will you use this Data
# to: (1) allow, enable, or otherwise support the transmission of mass
# unsolicited, commercial advertising or solicitations via e-mail, telephone,
# or facsimile; or (2) enable high volume, automated, electronic processes
# that apply to VeriSign (or its computer systems). The compilation,
# repackaging, dissemination or other use of this Data is expressly
# prohibited without the prior written consent of VeriSign. You agree not to
# use electronic processes that are automated and high-volume to access or
# query the Whois database except as reasonably necessary to register
# domain names or modify existing registrations. VeriSign reserves the right
# to restrict your access to the Whois database in its sole discretion to ensure
# operational stability. VeriSign may restrict or terminate your access to the
# Whois database for failure to abide by these terms of use. VeriSign
# reserves the right to modify these terms at any time.
# The Registry database contains ONLY .COM, .NET, .EDU domains and
# Registrars.
# Domain Name: microsoft.com
# Registry Domain ID: 2724960_DOMAIN_COM-VRSN
# Registrar WHOIS Server: whois.markmonitor.com
# Registrar URL: http://www.markmonitor.com
# Updated Date: 2025-04-01T12:38:29+0000
# Creation Date: 1991-05-02T04:00:00+0000
# Registrar Registration Expiration Date: 2026-05-03T00:00:00+0000
# Registrar: MarkMonitor, Inc.
# Registrar IANA ID: 292
# Registrar Abuse Contact Email: abusecomplaints@markmonitor.com
# Registrar Abuse Contact Phone: +1.2086851750
# Domain Status: clientUpdateProhibited (https://www.icann.org/epp#clientUpdateProhibited)
# Domain Status: clientTransferProhibited (https://www.icann.org/epp#clientTransferProhibited)
# Domain Status: clientDeleteProhibited (https://www.icann.org/epp#clientDeleteProhibited)
# Domain Status: serverUpdateProhibited (https://www.icann.org/epp#serverUpdateProhibited)
# Domain Status: serverTransferProhibited (https://www.icann.org/epp#serverTransferProhibited)
# Domain Status: serverDeleteProhibited (https://www.icann.org/epp#serverDeleteProhibited)
# Registrant Name: Domain Administrator
# Registrant Organization: Microsoft Corporation
# Registrant Street: One Microsoft Way,
# Registrant City: Redmond
# Registrant State/Province: WA
# Registrant Postal Code: 98052
# Registrant Country: US
# Registrant Phone: +1.4258828080
# Registrant Phone Ext:
# Registrant Fax: +1.4259367329
# Registrant Fax Ext:
# Registrant Email: admin@domains.microsoft
# Tech Name: MSN Hostmaster
# Tech Phone: +1.4258828080
# Tech Email: msnhst@microsoft.com
# Name Server: ns3-39.azure-dns.org
# Name Server: ns4-39.azure-dns.info
# Name Server: ns2-39.azure-dns.net
# Name Server: ns1-39.azure-dns.com
# DNSSEC: unsigned
# URL of the ICANN WHOIS Data Problem Reporting System: http://wdprs.internic.net/
# >>> Last update of WHOIS database: 2026-01-11T14:06:36+0000 <<<
# For more information on WHOIS status codes, please visit:
# https://www.icann.org/resources/pages/epp-status-codes
# If you wish to contact this domainβs Registrant or Technical
# contact, and such email address is not visible above, you may do so via our web
# form, pursuant to ICANNβs Temporary Specification. To verify that you are not a
# robot, please enter your email address to receive a link to a page that
# facilitates email communication with the relevant contact(s).
# Web-based WHOIS:
# https://domains.markmonitor.com/whois/contact/microsoft.com
# If you have a legitimate interest in viewing the non-public WHOIS details, send
# your request and the reasons for your request to whoisrequest@markmonitor.com
# and specify the domain name in the subject line. We will review that request and
# may ask for supporting documentation and explanation.
# The data in MarkMonitorβs WHOIS database is provided for information purposes,
# and to assist persons in obtaining information about or related to a domain
# nameβs registration record. While MarkMonitor believes the data to be accurate,
# the data is provided "as is" with no guarantee or warranties regarding its
# accuracy.
# By submitting a WHOIS query, you agree that you will use this data only for
# lawful purposes and that, under no circumstances will you use this data to:
# (1) allow, enable, or otherwise support the transmission by email, telephone,
# or facsimile of mass, unsolicited, commercial advertising, or spam; or
# (2) enable high volume, automated, or electronic processes that send queries,
# data, or email to MarkMonitor (or its systems) or the domain name contacts (or
# its systems).
# MarkMonitor reserves the right to modify these terms at any time.
# By submitting this query, you agree to abide by this policy.
# MarkMonitor Domain Management(TM)
# Protecting companies and consumers in a digital world.
# Visit MarkMonitor at https://www.markmonitor.com
# Contact us at +1.8007459229
# In Europe, at +44.02032062220
# ----- Which city is the registrant based in?
Redmond

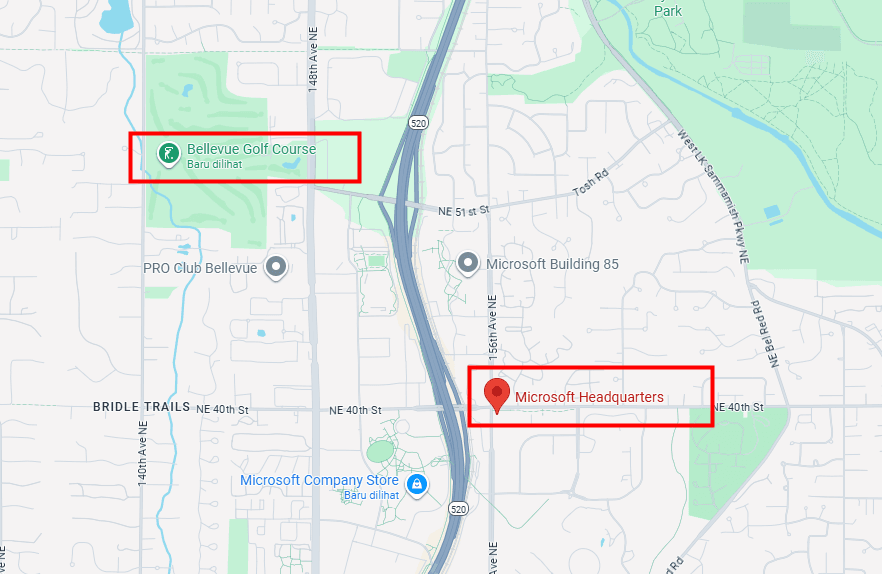

- [OSINT] What is the name of the golf course that is near the registrant address for microsoft.com?
Bellevue Golf Course
- What is the registered Tech Email for microsoft.com?
Dig
DNS (Domain Name System)
- DNS = mengubah domain β IP address
- Contoh:
google.comβ IP server Google - Supaya manusia nggak perlu menghafal IP
Urutan Resolusi DNS
- Hosts file (manual mapping, paling diprioritaskan)
- DNS cache lokal
- Recursive DNS server (ISP / Google / OpenDNS)
- Root Name Server
- TLD Server (
.com,.co.uk, dll) - Authoritative Name Server β sumber data asli (IP dikirim balik)
Jenis DNS Server
- Recursive β mencarikan jawaban
- Root β tahu lokasi TLD
- TLD β tahu lokasi authoritative
- Authoritative β simpan DNS record domain
Tool: dig
- Dig = query DNS manual
- Contoh:
dig google.com dig google.com @8.8.8.8 - Bagian penting: ANSWER (isi IP)
TTL (Time To Live)
- Menentukan berapa lama DNS disimpan di cache
- Satuan: detik
- Habis TTL β DNS akan di-query ulang
dig <domain> @<dns-server-ip>
dig tryhackme.com @8.8.8.8- What is DNS short for?
Domain Name System
- What is the first type of DNS server your computer would query when you search for a domain?
Recursive
- What type of DNS server contains records specific to domain extensions (i.e. .com, .co.uk*, etc)*? Use the long version of the name.
Top-Level Domain
- Where is the very first place your computer would look to find the IP address of a domain?
Hosts File
- [Research] Google runs two public DNS servers. One of them can be queried with the IP 8.8.8.8, what is the IP address of the other one?
8.8.4.4
python3 << PY
print(24*3600)
86400
PY- If a DNS query has a TTL of 24 hours, what number would the dig query show?
86400
